TrueVIS VG4 at a glance:

Expanded color gamut with Red, Orange, Green + Light Black. Smooth gradations, better skin tones, and neutral grays with True Rich Color 3,

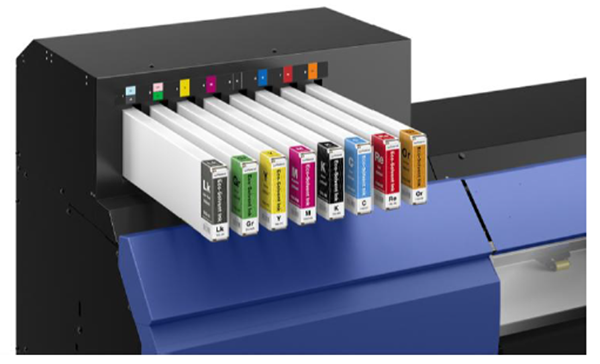

TrueVIS TR3 ink in 500 ml cardboard cartridges, including CMYKLcLmLk, White, Green, Orange and Red ink
LOW RUNNING COST: 30–35% less ink consumption vs VG3 and 10% lower total running cost (including cleaning).
Built for Productivity (Print + Cut + Automation) Integrated print & cut with new smart take-up unit supports unattended overnight production with real-world speeds up to 255 ft²/hr.
Smarter Workflow with Direct-to-Printer Operation: Direct printing from the control panel, improved VersaWorks 7 integration, and advanced variable data printing (QR codes, barcodes, personalization).
Entry-Level Price, High-End Capability Designed as a cost-effective entry into TrueVis, Includes features from higher-end VG4 Series.

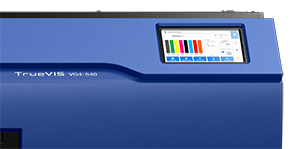

7" Touchscreen Display

The first thing you will notice about the new TrueVIS VG4 besides it's attractive new styling is the 7 inch touchscreen display which offers a better user experience as well as added functionality such as animations and tutorials for many of the maintenance and operational functions.

Automated Pinch Rollers

Redesigned inner pinch rollers raise during cutting jobs while outer rollers remain engaged to ensure accurate print and cut operation.

New Media Holder

A one-touch lever locks the media in-place in one easy motion— other easy loading features include an integrated fan to keep the media steady during set-up.

Adjustable Take-Up Reel

For a more efficient print operation, smart media clamps with integrated grooves don't interfere with sheet-cutting or need to be removed at any time.

Automated Printhead Alignment

A new optical eye automates the printhead alignment process to keep your prints razor sharp.

Smart Media Clamps

For a more efficient print operation, smart media clamps with integrated grooves don't interfere with sheet-cutting or need to be removed at any time.

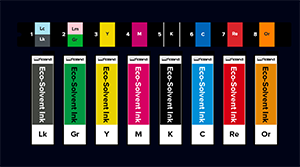

Orange, Green and Red options for added vibrancy and color accuracy

TR3 eco-solvent inks let you tailor your VG4 Series printer/cutter to your applications, from Dual CMYK for high productivity to expanded ink sets of up to eight colors for richer color, smoother gradients, and more accurate brand matching. TR3 ink configurations now include a new Red option, alongside Orange, Green, Light Black, and high- opacity White for window graphics and specialty output.

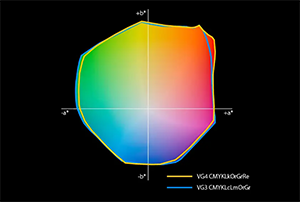

Expand your Color Gamut with new TR3 Ink

Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 3 and TR3 Ink. Improve reproduction of specific brand colors and combine neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.

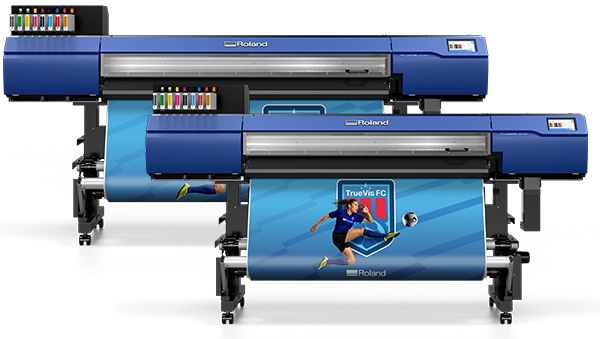

Models:		VG4-640	VG4-540
Printing Method		Piezo ink-jet method
Media	Width	13.2 to 64 in. (335 to 1,625 mm)	11.7 to 54 in. (295 to 1,371 mm)
	Thickness	Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 m (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
	Roll outer diameter	Max. 9.84 in. (250 mm)
	Roll weight	Max. 99 lb. (45 kg)	Max. 77 lb. (35 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Max. 62.9 in. (1,600 mm)	Max. 52.9 in. (1,346 mm)
Ink	Type	Eco-Solvent Ink (TR3) 500 ml cartridge (only white 220 ml)
Ink	Colors	Eight colors (Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red) Eight colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, and Red) Seven colors (Cyan, Magenta, Yellow, Black, Orange, Red, and White (2 cartridges)) Four colors (Cyan, Magenta, Yellow, and Black)
Printing resolution (dots per inch)		Max. 1,800 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
Blade	Offset	0.0 to 59 mil (0.000 to 1.500 mm)
Software resolution (when cutting)		0.98 mil/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120 / 220-240 Va.c. 50 / 60 Hz 8.6 / 4.4 A
Power consumption	During operation	Approx. 1,140 W
Power consumption	Sleep mode	Approx. 40 W
Acoustic noise level	During operation	66 dB (A) or less
Acoustic noise level	During standby	56 dB (A) or less
Dimensions (Width x Depth x Height)		113.62 in. x 29.45 in. x 55.71 in. (2,886 mm × 748 mm × 1,415 mm)	103.62 in. x 29.45 in. x 55.71 in. (2,632 mm × 748 mm × 1,415 mm)
Weight		417 lb. (189 kg)	402 lb. (182 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32°C), humidity: 35 to 80% RH (no condensation)
Environment	Not operating	Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation)
Included items		Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.
